Aluskit® fittings
7090307

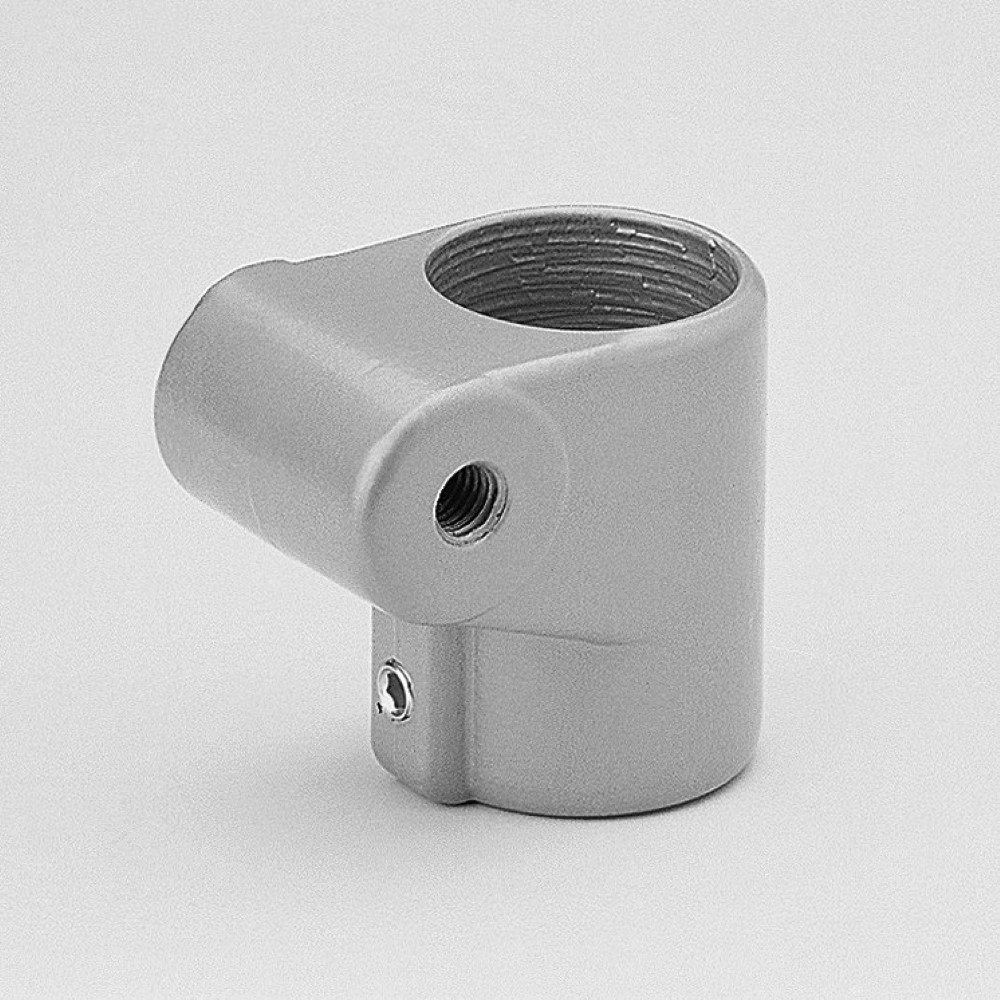

P1 Ø30 swivel union

Through tube fitting for creating parallel connections between two tubes at variable angles in combination with another identical fitting or item no. 7090308. The tubes are secured by pressure exerted by captive fasteners. No machining of the tubes is required.

Weight: 0.197 kg/ud
Finish: Varius available
Diameter Ø
Ø30
MaterialAvailability
AlMg3 FOn request
There are no properties available for this product.
